HD44780 16x2

Detailed Product Material:

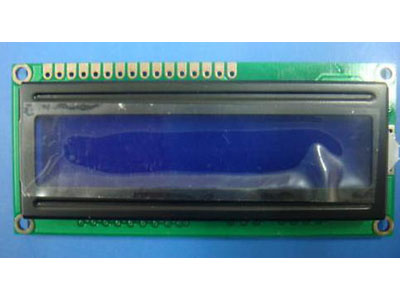

• This is an industry standard HD44780 based controlled 2 lines x 16 characters LCD display with blue backlight and white characters. It is a parallel interface so you will need 7 GPIO pins for 4-bit mode or 11 GPIO pins for 8-bit mode to interface to this LCD screen.

  Features:
  • Wide viewing angle and high contrast
  • Industry standard HD44780 equivalent LCD controller built-in
  • +5V DC LED blue backlight
  • Don't need separate power supply for backlight
  • Supported 4 or 8 bit parallel interface
  • Display 2-line X 16-character white
  • Operate with 5V DC
  • Free 16 positions male header

  Specifications:
  • Module Size (W x H x T): 80mm X 36mm X 14mm
  • Black Metal Bezel (W x H): 72.2mm X 24.1mm
  • Viewing Area (W x H): 64.5mm X 14.5mm
